Radio/Navigation System Frame, Removing And Installing (Fully Digital Instrument Cluster): Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front passenger side instrument panel decorative trim (fully digital instrument cluster). Refer to INSTRUMENT PANEL DECORATIVE TRIM WITH AMBIENT LIGHTING, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .

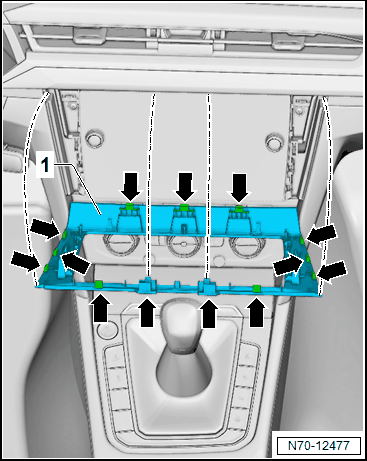

-- Carefully unclip the frame -1- from the clip connections -arrows-, using the :VAS895 015 .
