Inner CV Joint, Checking: Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

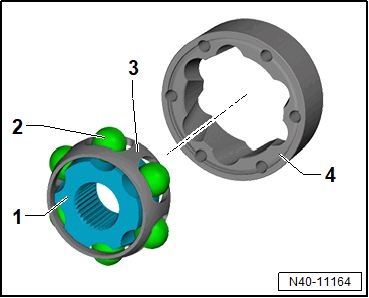

-- Insert the ball hub -1- over the two bevels into the ball cage -3-. The installation position is arbitrary. Push the balls -2- in the cage.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ball hub has two different distances between ball tracks, a larger and a smaller.

-- Insert the hub with cage and balls upright into joint -4-.

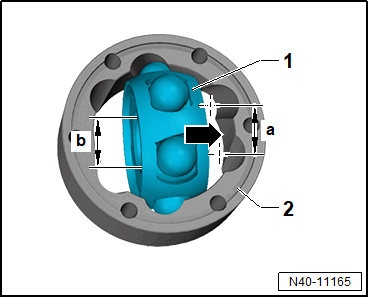

When inserting, make sure that in each case the wide gap -a- at joint piece contacts narrow gap -b- at hub after swinging in.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Chamfer on inner diameter of ball hub (splines) must face large diameter of joint piece.

-- Pay attention to the bevel on the inner diameter of the ball hub. Must be visible after swinging in.

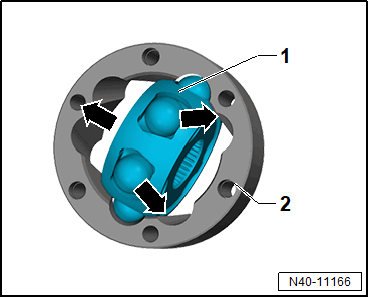

-- Swing in ball hub -1-, to do so swing out hub far enough from cage -arrows- so that the balls have the distance of the running paths.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

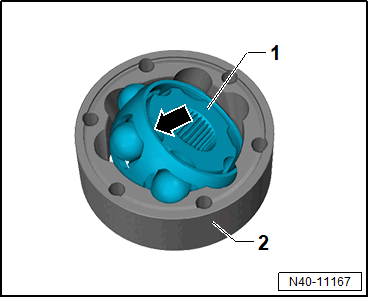

-- Swing in hub with balls -1- by pressing forcefully onto cage -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
