Wiper Blade, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Refer to Windshield Wiper, Bringing into Service Position  .

-- Lift the windshield wiper arm off the windshield.

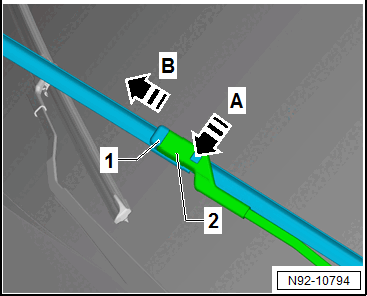

-- Release the clamp in the -direction of the arrow A-.

GWWN92-10794Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wiper blade -1- in -direction of the arrow B- from the wiper arm -2-.
