Overview - Windshield Washer System

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

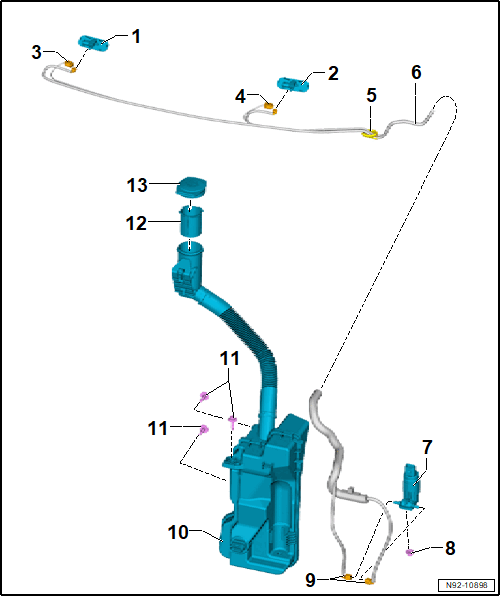

Fig 1: Exploded View Of Windshield Washer System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Washer Nozzle
- Depending on equipment/version
- With Right Washer Nozzle Heater -Z21-
- Adjust the washer nozzles. Refer to WINDSHIELD WIPER AND WASHER SYSTEM AND HEADLAMP WASHER SYSTEM, CHECKING FUNCTION .
- Refer to Washer Nozzles, Removing and Installing .
Left Washer Nozzle
- Depending on equipment/version
- With Left Washer Nozzle Heater -Z20-
- Adjust the washer nozzles. Refer to WINDSHIELD WIPER AND WASHER SYSTEM AND HEADLAMP WASHER SYSTEM, CHECKING FUNCTION .
- Refer to Washer Nozzles, Removing and Installing .
Connector for the Right Washer Nozzle Heater -Z21-
- Depending on equipment/version
Connector for the Left Washer Nozzle Heater -Z20-
- Depending on equipment/version
Grommet
Washer Fluid Hose
Windshield and Rear Window Washer Pump -V59-
- Refer to Windshield Washer Pump V59, Removing and Installing .
Grommet
Washer Fluid Hose Connection
Washer Fluid Reservoir
- With Windshield Washer Fluid Level Sensor -G33-.
- Refer to Washer Fluid Reservoir, Removing and Installing .
Bolt
- Quantity: 3
- 8 Nm
Screen
Cap for Filler Neck
