Overview - Rear Window Wiper System

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

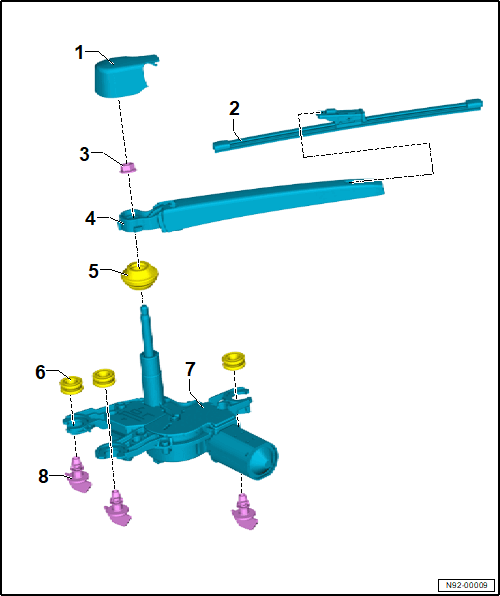

Fig 1: Exploded View Of Rear Window Wiper System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cap
Wiper Blade
- Refer to Wiper Blade, Removing and Installing .
Nut
- 12 Nm
Windshield Wiper Arm
- Refer to Windshield Wiper Arm, Removing and Installing .
Rear Window Seal
Rubber Ring
- Quantity: 3
Rear Window Wiper Motor -V12-
- Refer to Rear Window Wiper Motor V12, Removing and Installing .
Clip
- Quantity: 3
- Replace after removing
