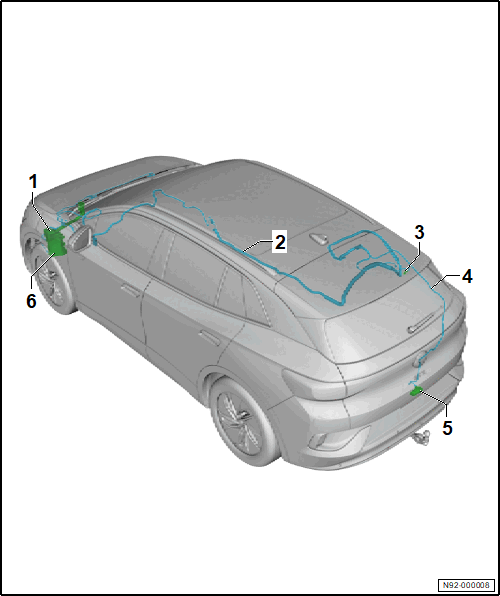

Overview - Rear Window Washer System
WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Washer Fluid Hose
- In the sill to the washer nozzle from rear window washer system
- Washer Nozzle from Rear Window Washer System
- Model-dependent
- Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Washer Fluid Hose
- In the rear lid to the rearview camera washer nozzle
- Rearview Camera Washer Nozzle
- Refer to WASHER NOZZLE, REMOVING AND INSTALLING .
- Windshield and Rear Window Washer Pump -V59-
