Data Bus On Board Diagnostic Interface J533, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

If the on board diagnostic interface is replaced, perform the test plan for replacing the control modules:

-- Perform the "Control module, replacing" function with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the glove compartment lid. Refer to GLOVE COMPARTMENT LID, REMOVING AND INSTALLING .

Only for RHD

-- Remove the front passenger side instrument panel cover. Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

Continuation for all vehicles

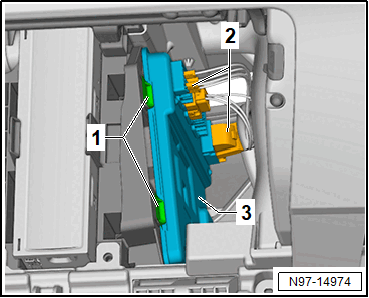

-- Release the hook -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the on board diagnostic interface -3- until the connectors -2- are accessible.

-- Disconnect the connectors -2-.

-- Remove the diagnostic interface -3-.
