Radiator Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front underbody trim panel. Refer to FRONT UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

-- Performing impact member service position. Refer to the appropriate Service Information .

CAUTION:

There is a risk of injury if the radiator fan turns on by itself.

- When performing procedures near the radiator maintain a distance to the radiator.

- Do not reach into the radiator fan when disconnecting the connector.

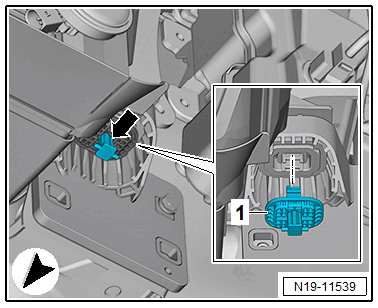

-- Disconnect the connector for the Radiator Fan -VX57- -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refer to Coolant, Draining .

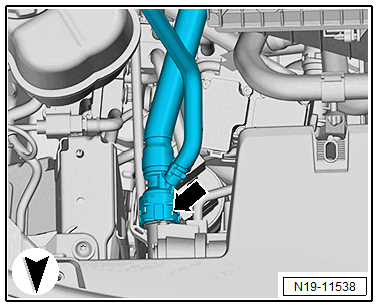

-- Pull the clamp -arrow- out and remove the coolant hose -1- from the lower left from the radiator.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

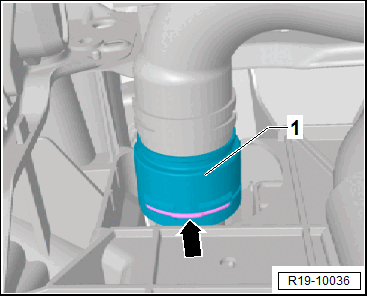

-- Pull the clamp -arrow- out and remove the right upper coolant hose from the radiator.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the refrigerant lines from the condenser/gas cooler. Refer to REFRIGERANT LINES FOR CONDENSER/GAS COOLER, DISCONNECTING AND CONNECTING, R1234YF .

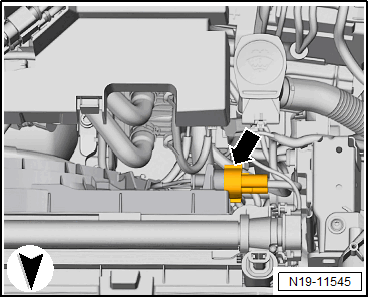

-- Pull out the lower, left and right, radiator mount locking mechanisms -arrow- from the holding plates -1- and then remove the holding plates.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condition

The help of a second person is necessary for the following procedure.

-- Lift the radiator module out of the radiator mounts.
