Overview - Cooling System: Notes

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

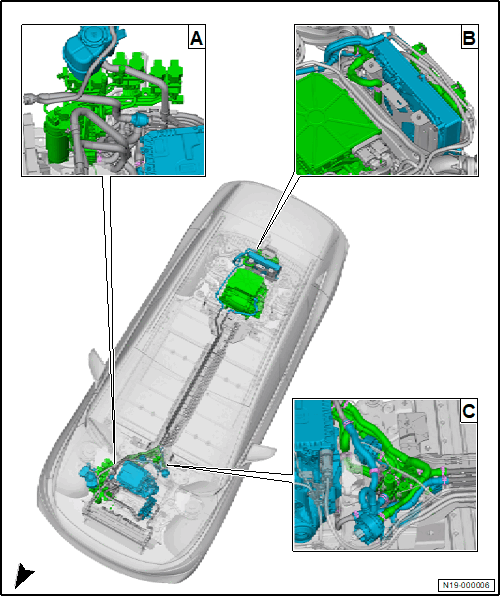

GWWN19-000006Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. A -  Overview - Cooling System, Right Front
  2. B -  Overview - Cooling System, Rear
  3. C -  Overview - Cooling System, Left Front
