Cooling System, Filling With Cooling System Charge Kit Vas 6096: Notes
WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Adapter:VAS 691 005/5
- Electric Vacuum Pump:VAS 6096/2
- Cooling System Charge Device:VAS 6968
- Cooling System Charge Kit:VAS 6096
- Cooling System Tester:V.A.G 1274B
- Hose Clamps - Up To 25mm:3094
Preparation
-- Connect all coolant hoses.

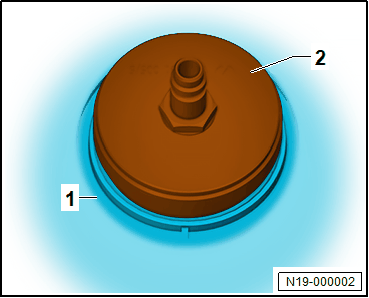

-- Screw the Adapter:VAS 691 005/5 -2- on the coolant expansion tank -1-.

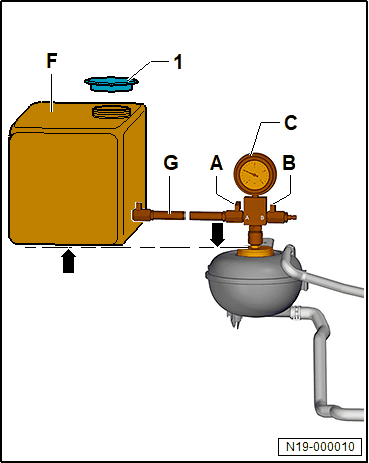

-- Position the Cooling System Charge Device:VAS 6968 -F- so that it is higher than the coolant expansion tank -arrows-.
Condition
- The coolant filling device must be filled with a minimum 10 liters of coolant in the correct mixture ratio. Refer to the appropriate Service Information .
-- Bleed the hose -G-. For this open the shut-off valve on the coolant filling device -F- and the shut-off valve -A- until the hose -G- is filled with coolant and no air is present.
-- Closes the shut-off valve -A-.
-- Open the cap -1-.
