Overview - Rear Motor

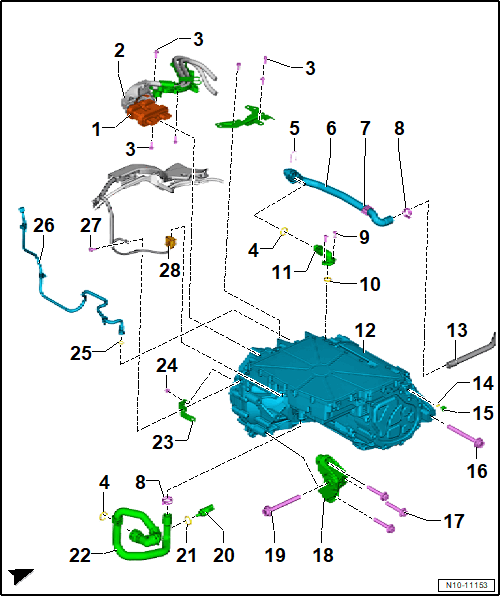

Fig 1: Exploded View Of Rear Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector
- High voltage
Wiring Guide
Bolt
- Quantity: 6
- 8 Nm
O-Ring
Clip
Coolant Hose
Clip
Clamp
Bolt
- Quantity: 2
- Replace after removing
- 8 Nm +90°
O-Ring
- Replace after removing
Connection
Three-Phrase Current Drive -VX54-
- With Electric Drive Power and Control Electronics -JX1-.
- Refer to ELECTRIC DRIVE OUTPUT AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, RWD or ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, AWD .
- Refer to Rear Motor, Removing .
- Refer to Rear Motor, Installing .
Coolant Pipe
- To remove, remove the high-voltage battery. Refer to High-Voltage Battery Unit .
O-Ring
Breather Valve
- Special lubricant for the seal. Refer to the Parts Information.
- Replace after removing
Bolt
- Quantity: 2
- Replace after removing
- 130 Nm +180°
Bolt
- Quantity: 3
- Replace after removing
- 70 Nm +180°
Motor Support
Bolt
- Replace after removing
- 130 Nm +180°
Temperature Sensor -G18-
- Refer to Temperature Sensor G18, Removing and Installing .
O-Ring
- Replace after removing
Coolant Hose
Bracket
- Attachment point for the potential equalization cable
Nut
- 8 Nm
O-Ring
Bleeder Line
Bolt
- 8 Nm
Connector
