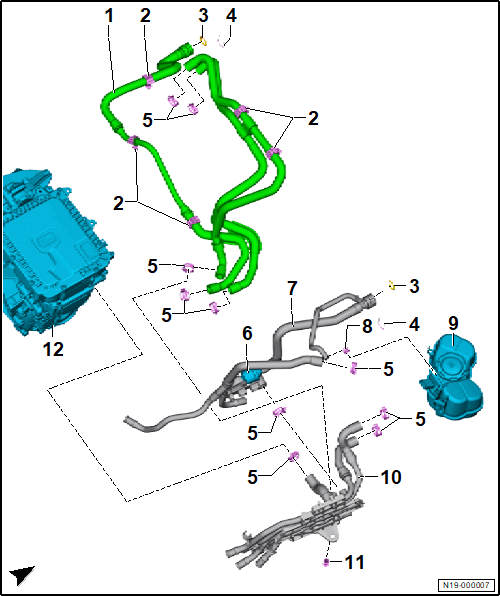

Overview - Cooling System, Right Front
- Coolant Hose
- Clip
- O-Ring
- Clip
- Hose Clamp
- Thermostat
- Starts to open 15 °C (59 °F)
- Coolant Hose
- Hose Clamp
- Coolant Expansion Tank
- With the Engine Coolant Level Sensor -G32-
- Refer to Coolant Expansion Tank, Removing and Installing .
- Coolant Collection Pipe
- The coolant hose and coolant pipe are marked using numbers
- Pay attention to the allocation
- Expanding Rivet
- Three-Phase Current Drive 2 -VX97-
- With Electric Drive Power and Control Electronics 2 -JX4-.
- Refer to Overview - Front Motor .
- Refer to Front Motor, Removing .
- Refer to Front Motor, Installing .
- Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, AWD .
