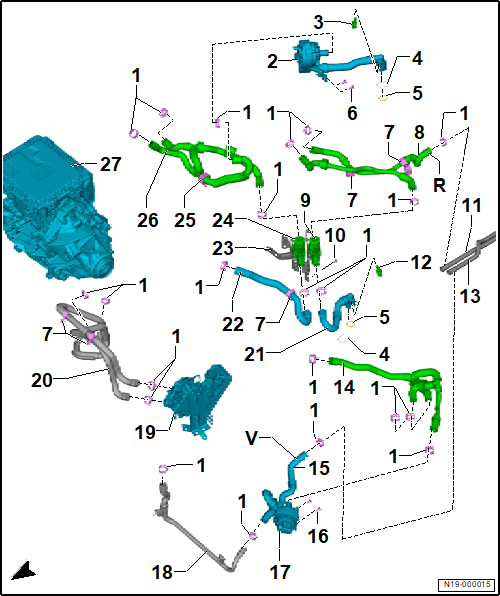

Overview - Cooling System, Left Front

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hose Clamp
High-Voltage Battery Coolant Pump -V590-
- Refer to Overview - Electric Coolant Pump .
- Refer to High-Voltage Battery Coolant Pump V590, Removing and Installing AWD .
High-Voltage Battery Coolant Temperature Sensor 2 -G899-
- Refer to OVERVIEW - MOTOR COOLANT TEMPERATURE SENSOR .
- Refer to HIGH-VOLTAGE BATTERY COOLANT TEMPERATURE SENSOR 2 G899, REMOVING AND INSTALLING .
Clip
O-Ring
Bolt
- Quantity: 2
- 8 Nm
Clip
Coolant Hose
- Identification -R- = return
Mixing Valve for High-Voltage Battery Warming -V683-
- Refer to Overview - Coolant Valves .
- Refer to MIXING VALVE FOR HIGH-VOLTAGE BATTERY WARMING V683, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 8 Nm
Coolant Pipe
- Return
High-Voltage Battery Coolant Temperature Sensor 1 -G898-
- Refer to OVERVIEW - MOTOR COOLANT TEMPERATURE SENSOR .
- Refer to HIGH-VOLTAGE BATTERY COOLANT TEMPERATURE SENSOR 1 G898, REMOVING AND INSTALLING .
Coolant Pipe
- Supply
Coolant Hose
Coolant Hose
- Identification -V- = supply
Bolt
- Quantity: 2
- 8 Nm
Low Temperature Circuit Coolant Pump -V468-
- Refer to Overview - Electric Coolant Pump .
- Refer to Low Temperature Circuit Coolant Pump V468, Removing and Installing .
Coolant Pipe
High-Voltage Heater (PTC) 3 -Z132-
- Refer to HEATING ELEMENT (PTC) 3 -Z132-, REMOVING AND INSTALLING, AWD .
Coolant Hose
Coolant Hose
Coolant Hose
Bracket for Mixing Valves
Mixing Valve 2 for High-Voltage Battery Warming -V696-
- Dependent on vehicle equipment/version
- Refer to Overview - Coolant Valves .
- Refer to MIXING VALVE 2 FOR HIGH-VOLTAGE BATTERY WARMING V696, REMOVING AND INSTALLING .
Clip
Coolant Hose
Three-Phase Current Drive 2 -VX97-
- With Electric Drive Power and Control Electronics 2 -JX4-.
- Refer to Overview - Front Motor .
- Refer to Front Motor, Removing .
- Refer to Front Motor, Installing .
- Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, AWD .
