Overview - Windshield Projection (Head-Up Display)

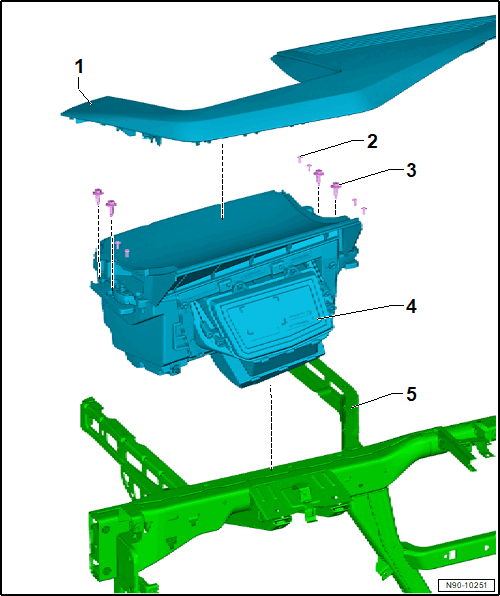

Fig 1: Exploded View Of Windshield Projection (Head-Up Display)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Panel Decorative Trim
   • Refer to OVERVIEW - INSTRUMENT PANEL .
2. Bolt
   • 1.2 Nm
   • Quantity: 6
3. Bolt
   • 4.5 Nm
   • Quantity: 4
4. Windshield Projection Head Up Display Control Module -J898-
   • Refer to Windshield Projection Head Up Display Control ModuleJ898, Removing and Installing  .
   • Refer to Windshield Projection Head Up Display Control ModuleJ898, Calibrating  .
5. Instrument Panel Crossmember
