Overview - Horn

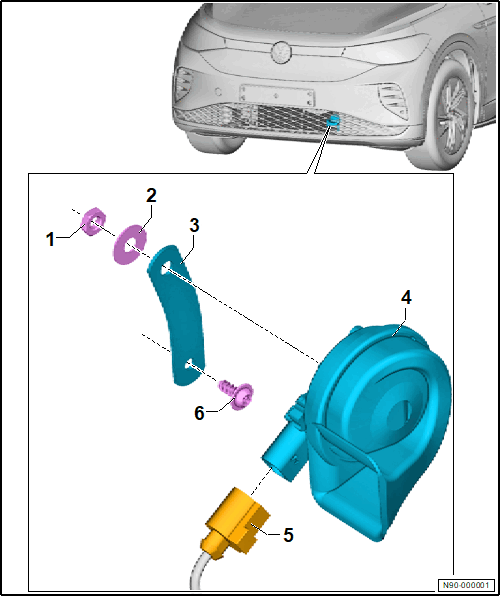

Fig 1: Exploded View Of Horn
GWWN90-000001Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Nut
    • 14 Nm
  2. Washer
  3. Bracket for the Signal Horn and Dual Tone Horn -H1-
  4. Signal Horn and Dual Tone Horn -H1-
  5. Connector
  6. Bolt
    • 6 Nm
