Window Guide, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

CAUTION:

Uneven seat and position depending on the installation.

Wind noises are possible.

- When aligning and installing pay attention to the uneven seating and position.

-- Coat the window guide with soapy water to make it easier to install.

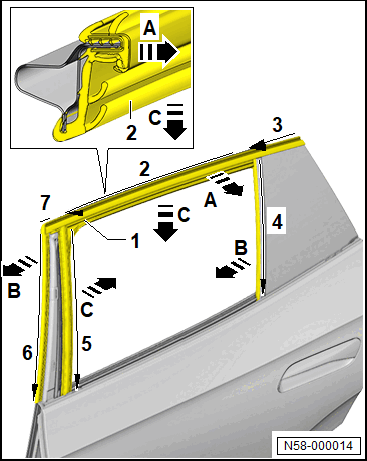

-- Insert the window guide -1- in areas -4- and -5- in the mounts on the door.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the window guide -1- in area -2- opposite the -direction of arrow C-.

-- Position the window guide -1- in area -7- opposite the -direction of arrow A- and align it with the rear door B-pillar trim.

-- Press on the window guide -1- in area -6- starting at the top.

-- Starting at the B-pillar, press on the window guide -1- evenly in areas -2- and -7-.

-- Press on the window guide -1- in area -3- on the fixed rear door window.

-- Secure the fixed rear door window. Refer to Fixed Rear Door Window, Removing and Installing .

-- Press on the window guide -1- in the areas -4- and -5-.
