Rear Side Window, Removing And Installing: Removing

Removing the rear side window is described using the Flush Bonded Window Kit: V.A.G 1474 B .

The Cutting Tool for Bonded Windows: VAS 6452 can also be used.

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

CAUTION:

Risk of damaging the component surfaces.

- Tape off the surrounding components in the visible area using commercially available adhesive tape.

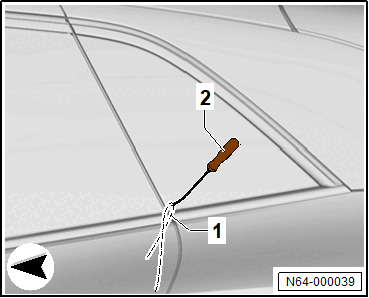

-- Pull the Cutting Cord: VAS 861 001/1A -1- with Awl: V.A.G 1474/2 -2- inward through the adhesive sealant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

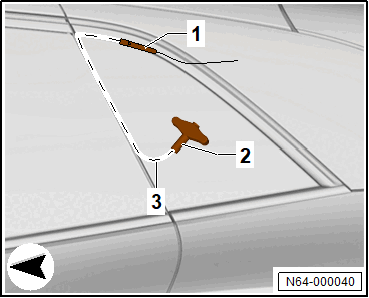

-- Press the seal on the rear side window to the side.

-- Secure one end of the Window Removal Set - Cutting Cord: VAS 861 001/1A -3- on the Bonded Window Tool Kit - Pull Handle: V.A.G 1351/1 -2- to counterhold.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

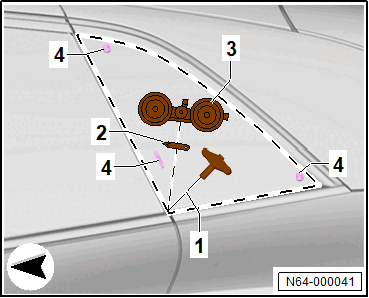

-- Insert the Cutting Cord: VAS 861 001/1A -3- behind the seal in the window flange using the Awl: V.A.G 1474/2 -1-.

-- Secure the end of the Cutting Cord: VAS 861 001/1A -1- in the vehicle interior on the Window Reel Device: V.A.G 1654A -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

Increased force is necessary in the area near the clips -4-.

-- Move the Window Reel Device: V.A.G 1654A -3- to cut free the rear side window.

-- Press the Cutting Cord: VAS 861 001/1A -1- against the glass using the Wedges: V.A.G 1474/5 -2- while cutting free to ensure there is clearance on the window flange.
