Damaged Window Glass, Removing
Special tools and workshop equipment required
- Window Cutter: V.A.G 1561B
- Window Cutter - U Blade (2 pc.): V.A.G 1561/3
CAUTION:
Risk of injury to the hands and eyes from glass fragments.
Getting cut is possible.
- Wear protective eyewear.
- Wear safety gloves.
CAUTION:
Risk of damaging the component surfaces.
- Tape off the surrounding components in the visible area using commercially available adhesive tape.
-- Protect the body and vehicle interior from glass splinters.
-- Remove the glass pieces up to the adhesive residue.
-- Disconnect the connectors.

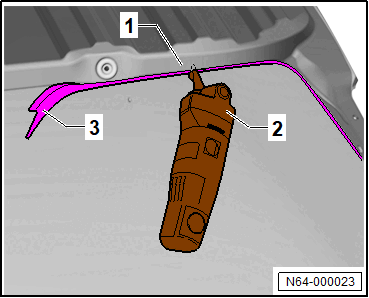

-- Tape off all around the body flange -1- using fabric-reinforced adhesive tape.
-- Cut through the adhesive residue (with the remaining glass) -3- in the window opening using the Window Cutter: V.A.G 1561A -2- and the Window Cutter (U Blade): V.A.G 1561/3 .
