Overview - Rear Window

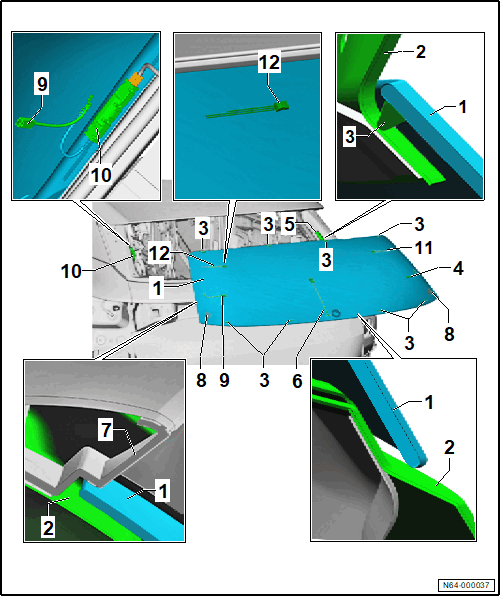

Fig 1: Rear Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Window -ZX1-
- with Rear Window Defogger - Z1-
- Depending on the model with Rear Window Breakage Sensor - G304-
- Refer to Rear Window, Removing and Installing .
- Refer to Damaged Rear Window, Removing .
Body Flange
Spacer
- Model-dependent
Connector for Rear Window Defogger - Z1-
- Negative wire
FM Frequency Filter in Negative Wire - R178-
Connector for Rear Window Breakage Sensor - G304-
- Model-dependent
- Depending on the equipment/version
Side Spoiler
- Model-dependent
- Refer to SIDE SPOILER, REMOVING AND INSTALLING .
Centering Pin
- Depending on the equipment/version
- Quantity: 2
Connector for Rear Window Defogger - Z1-
- Positive Cable
FM Frequency Filter in Positive Wire - R179-
Window Antenna Connector
- Negative wire
Window Antenna Connector
- Positive Cable
