Lock Cylinder, Removing And Installing: Removing

-- Remove the door handle cap. Refer to Door Handle Cap, Removing and Installing  .

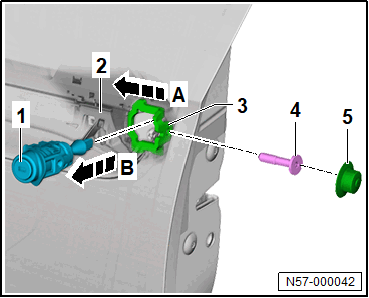

-- Pry out the cap -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -4- all the way.

-- Press the bolt -4- with locking mechanism -3- in the -direction of arrow A- until the lock cylinder -1- is released.

-- Remove the lock cylinder -1- in the -direction of the arrow B- out of the mounting bracket -2-.
