Inner Window Shaft Strip, Removing And Installing: Installing

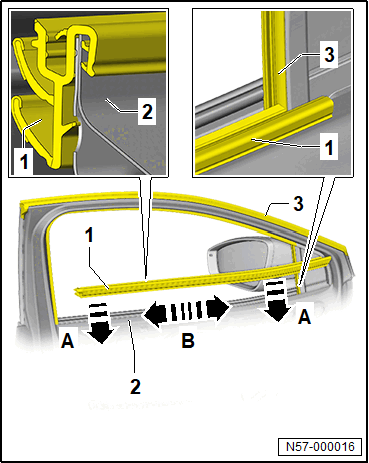

-- Center the inner window shaft strip -1- in -the direction of arrow B- between the fixed front door window and the rear section of the window guide -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the inner window shaft strip -1- evenly by hand onto the door flange -2- in the -direction of arrow A-.

Further installation is performed in reverse order of the removal.
