Towing Recognition Control Module J345, Removing And Installing: Removing

If the towing recognition control module is being replaced, the test plan to replace the control module must be performed:

-- Perform the "Replace towing recognition control module" function using the. Refer to DIAGNOSTIC ENTRIES .

Continuation

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

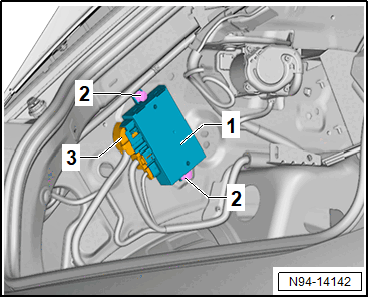

Towing control module with screws

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Towing control module with expanding rivet

-- Remove expanding rivet -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

-- Remove the towing recognition control module -1-.

-- Disconnect the connectors -3-.
