Seat Adjustment Control Module, Removing And Installing: Removing

-- Refer to Front Seat, Mounting on Fixture for Seat Repair  .

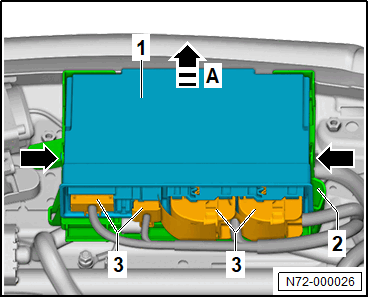

-- Unclip the wire from the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -3-.

-- Unclip the seat adjustment control module -1- at the mounting tabs -arrows-.

-- Remove the seat adjustment control module -1- in the -direction of arrow A-.
