Overview - Instrument Panel CROSSMEMBER

The overview is described as an example for a LHD vehicle

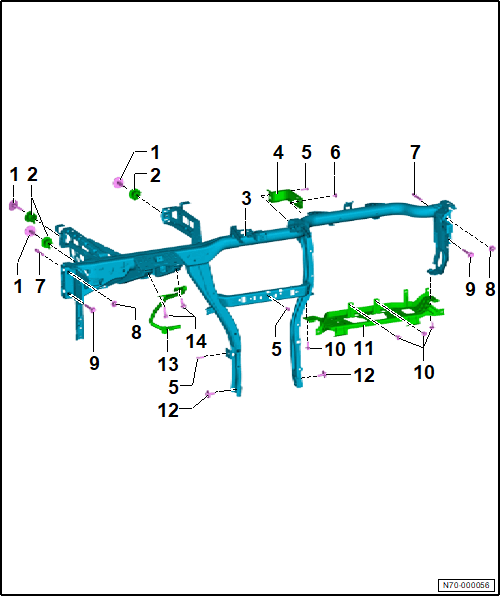

Fig 1: Exploded View Of Instrument Panel Crossmember

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • Quantity: 3
   • 20 Nm
2. Adjusting Element
   • Quantity: 3
3. Instrument Panel Crossmember
   • Refer to Instrument Panel Crossmember, Removing and Installing  .
4. Bracket
5. Bolt
   • 4 Nm
6. Bolt
   • 10 Nm
7. Stud Bolt
   • Quantity: 2
   • 20 Nm
8. Nut
   • Quantity: 2
   • 20 Nm
9. Bolt
   • Quantity: 2
   • 20 Nm
10. Bolt
    • Quantity: 4
    • 4.5 Nm
11. Brace
12. Bolt
    • Quantity: 2
    • 20 Nm
13. Crash Bolster
    • Refer to Crash Bolster, Removing and Installing  .
14. Bolt
    • Tightening Specification. Refer to OVERVIEW - STEERING COLUMN .
