Left/Right Peripheral Camera R244 / R245, Removing And Installing: Removing

-- Remove the upper mirror cap. Refer to UPPER MIRROR CAP, REMOVING AND INSTALLING .

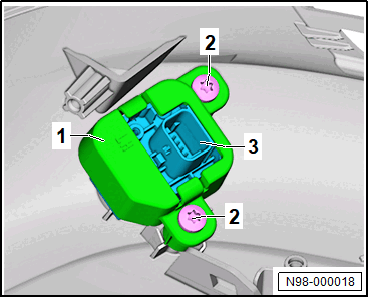

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1- with the camera -3-.

-- Disconnect the connector and remove the camera -3- from the bracket -1-.
