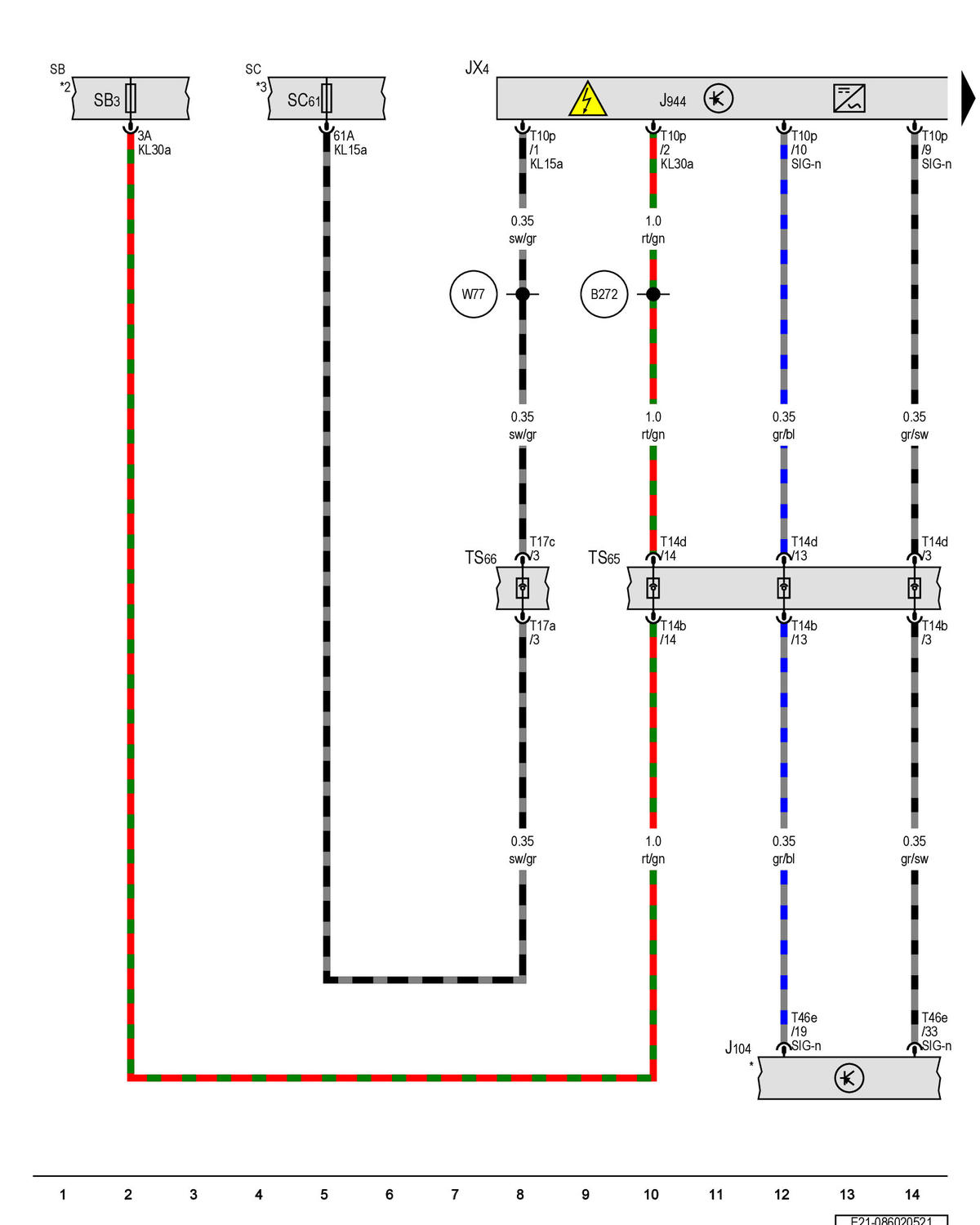

Electric Drive Power And Control Electronics 2, Abs Control Module, Fuse Panel B, Fuse Panel C: Notes

GWWE21-086020521Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
