Front Center Console Storage Compartment, Removing And Installing: Removing

-- Remove the display and control head trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .

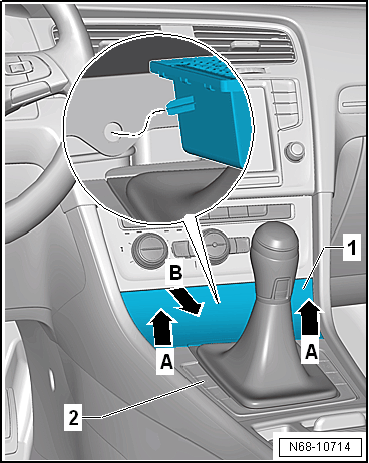

-- Unclip the front storage compartment -1- from the center console -2- -A arrows-.

GWWN68-10714Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front storage compartment -1- from the center console -2- toward the rear -arrow B-.

-- If equipped, disconnect the connectors from the front storage compartment.
