Display Control Head, Removing And Installing: Removing

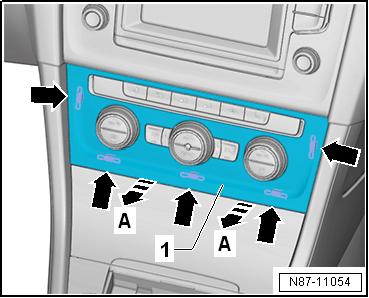

-- Unclip the trim -1- from the display and control head at the points indicated -arrows- with the :3409 in the direction of -arrow A-.
-- Push the display and control head in the direction of the instrument panel to release the expanding rivets.
-- Remove the expanding rivets -2- in the direction of -arrow A-.
-- Remove the display and control head -1- in the direction of -arrow B-.
