Overview - Instrument Cluster, Fully Digital Instrument Cluster

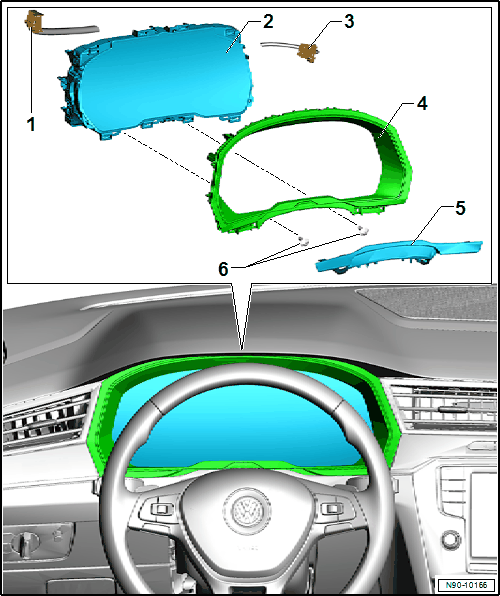

Fig 1: Exploded View Of Fully Digital Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Connector
   • For the instrument cluster
2. Instrument Cluster -KX2-
   • With Instrument Cluster Control Module -J285-
   • Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING, ALL-DIGITAL INSTRUMENT CLUSTER .
3. MOST Bus Connector
   • For the instrument cluster
4. Instrument Cluster Trim Molding
   • Removing and installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
5. Upper Steering Column Trim Panel
   • Overview. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
6. Bolt
   • 1.5 Nm
   • Quantity: 2
