Rear Brakes

Rear Brakes - Bosch Multi-link Rear Axle

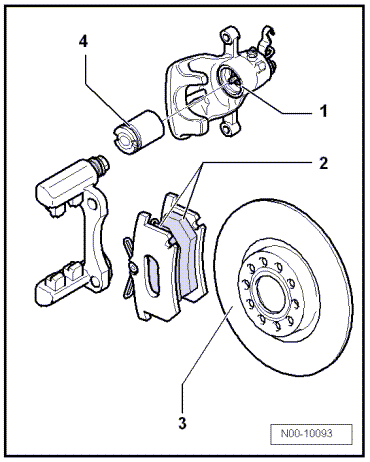

Fig 1: Exploded View Of Multi-Link Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KS/1KT
1	Brake caliper		Bosch
2	Brake pad, thickness without backing plate	mm	11
	Brake pad, wear limit without back plate	mm	3
3	Brake rotor	diameter in mm	272
	Brake rotor, thickness	mm	10
	Brake rotor, wear limit	mm	8
4	Brake caliper, piston	diameter in mm	38

Rear Brakes - PC 38 HRA Multi-Link Rear Axle

Fig 2: Exploded View Of Multi-Link Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KS/1KT
1	Brake Caliper		PC 38 HRA
2	Brake pad, thickness without backing plate	mm	11
	Brake pad, wear limit without backing plate	mm	3
3	Brake Rotor	diameter in mm	272
	Brake rotor, thickness	mm	10
	Brake rotor, wear limit	mm	8
4	Brake caliper, piston	diameter in mm	38

Rear Brakes - TRW Multi-Link Rear Axle

Fig 3: Exploded View Of Multi-Link Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KS/1KT
1	Brake Caliper		TRW
2	Brake pad, thickness without backing plate	mm	11
	Brake pad, wear limit without backing plate	mm	3
3	Brake Rotor	diameter in mm	272
	Brake rotor, thickness	mm	10
	Brake rotor, wear limit	mm	8
4	Brake caliper, piston	diameter in mm	38

Rear Brakes - CL 38 (15") Torsion Beam Rear Suspension

Fig 4: Exploded View Of Rear Brake C 38

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KD
1	Brake Caliper		CI 38 (15")
2	Brake pad, thickness	mm	11
2	Brake pad, wear limit without backing plate	mm	3
3	Brake Rotor	diameter in mm	253
	Brake rotor, thickness	mm	10
	Brake rotor, wear limit	mm	8
4	Brake caliper, piston	diameter in mm	38

Rear Brakes - CL 38 HRA Torsion Beam Rear Suspension

Fig 5: Exploded View Of Rear Brake C 38

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KD
1	Brake Caliper		CI 38 HRA
2	Brake pad, thickness	mm	11
2	Brake pad, wear limit without backing plate	mm	3
3	Brake Rotor	diameter in mm	253
	Brake rotor, thickness	mm	10
	Brake rotor, wear limit	mm	8
4	Brake caliper, piston	diameter in mm	38

Rear Brakes - C 38 Torsion Beam Rear Suspension

Fig 6: Exploded View Of Rear Brake C 38

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KD
1	Brake Caliper		C 38
2	Brake pad, thickness	mm	11
2	Brake pad, wear limit without backing plate	mm	3
3	Brake Rotor	diameter in mm	253
	Brake rotor, thickness	mm	10
	Brake rotor, wear limit	mm	8
4	Brake caliper, piston	diameter in mm	38

Rear Brakes - Multi-Link Rear Axle CII41 (17")

Fig 7: Exploded View Of Multi-Link Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KW
1	Brake Caliper		CII41 (17")
2	Brake pad, thickness without backing plate	mm	22
	Brake pad, wear limit without backing plate	mm	2
3	Brake Rotor	diameter in mm	310
	Brake rotor, thickness	mm	22
	Brake rotor, wear limit	mm	20
4	Brake caliper, piston	diameter in mm	41
