Window Guide, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Spray the window guide with soapy water to make it easier to install.

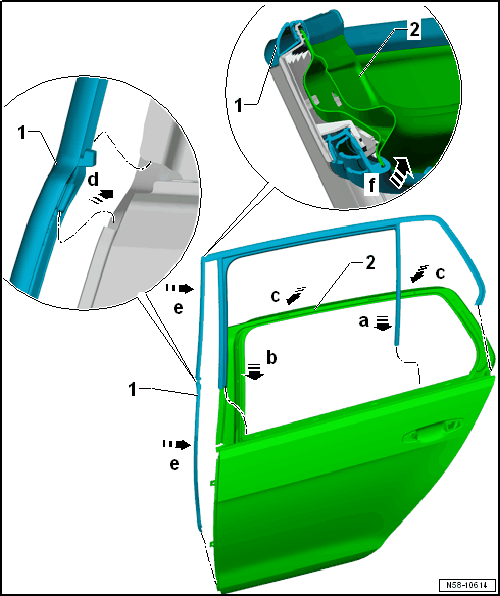

-- Push the window guide -1- into the door mounts -a and b arrows-.

-- Push the window guide on the front flange in the retainer -arrow d- and install on the sheet metal flange -e arrows-.

-- Attach the window guide -1- forward moving along the door flange -2- -c arrows-.

-- Pull the sealing lip on the window guide onto the door flange -arrow f- from the inside.

NOTE:

Make sure the window guide -1- fits evenly when installing it (wind noises).

Further installation is the reverse order of removal.
