Overview - Window Regulator

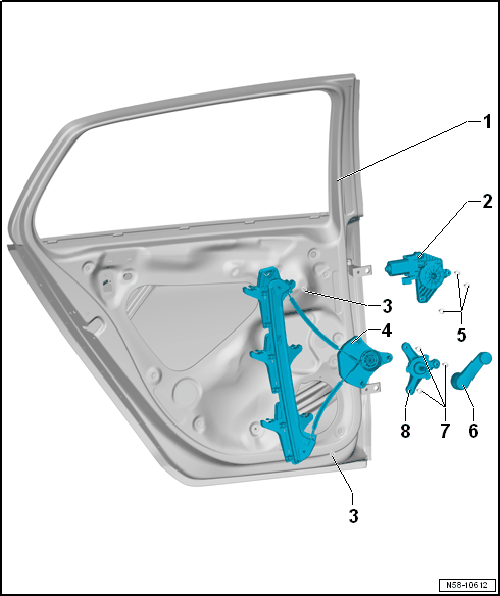

Fig 1: Exploded View Of Window Regulator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Door
Driver Side Rear Window Regulator Motor Control Module -J1016- /Front Passenger Side Rear Window Regulator Motor Control Module -J1017-
- The door control module and window regulator motor are one component.
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Hex Nut
- Quantity: 2
- 6 Nm
Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Bolt
- Quantity: 3 for the window regulator motor with door control module
- 3 Nm
Window Crank
- Removing and Installing. Refer to WINDOW CRANK, REMOVING AND INSTALLING .
Bolt
- Quantity: 3 for the window crank mechanism
- 3 Nm
Window Crank Mechanism
- Removing and Installing. Refer to the appropriate service information .
