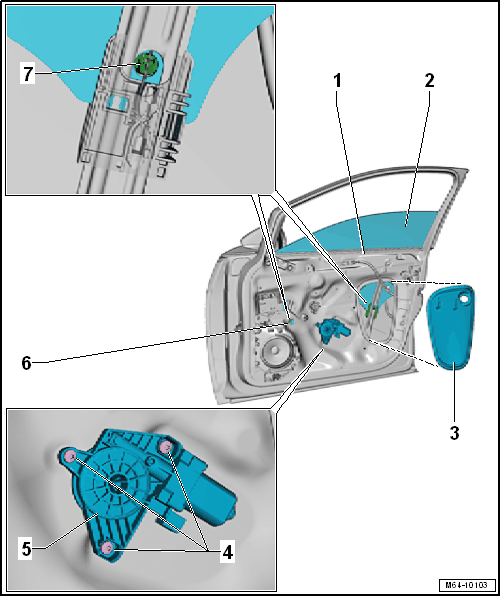

Overview - Front Door Window
NOTE:
The illustration shows the left side. The right side is identical.
- Front Door
- Front Door Window
- Removing and Installing. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
- Door Inner Cover
- Removing and Installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- Tightening specification. Refer to -Item- 4
- Window Regulator Motor
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Cable Bushing
- Catch
- Quantity: 2
- For attaching the door window on the window regulator
