Outer Window Shaft Strip, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

It is permissible to use assembly aids.

Do not use any striking tools to install the outer window shaft strip.

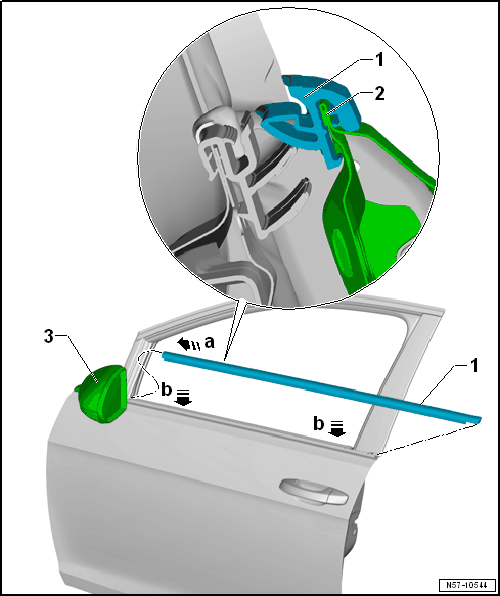

-- Push the outer window shaft strip -1- under the exterior rearview mirror -3- -arrow a-.

-- Align the outer window shaft strip -1- on the B-pillar and push it evenly by hand onto the door flange -2- -b arrows-.
