Mounting Bracket, Removing And Installing: Removing

NOTE:

The following describes the removal and installation of the left mounting bracket. The right side is done the same.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Depending on the version, remove the lock cylinder cap (refer to CAP WITH LOCK CYLINDER, REMOVING AND INSTALLING ) and the lock cylinder (refer to LOCK CYLINDER, REMOVING AND INSTALLING ).

-- Or remove the cap without the lock cylinder. Refer to CAP WITHOUT LOCK CYLINDER, REMOVING AND INSTALLING .

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

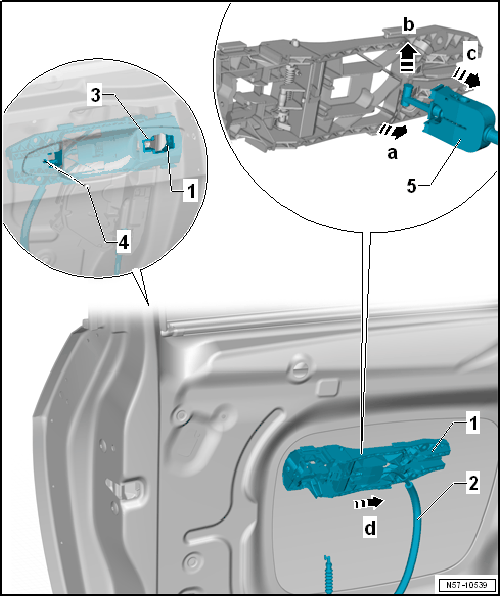

-- Remove the bolt -4- and remove the backing plate -3-.

-- Remove the mounting bracket -1- from the front door -arrow d-.

Release Cable, Detaching

-- Release the retainer -5- and pivot it out of the mount in the mounting bracket -arrow a-.

-- Remove the pin for the release cable from the mount -arrow b-.

-- Remove the release cable -2- from the mounting bracket -1- -arrow c-.
