Lock Cylinder, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

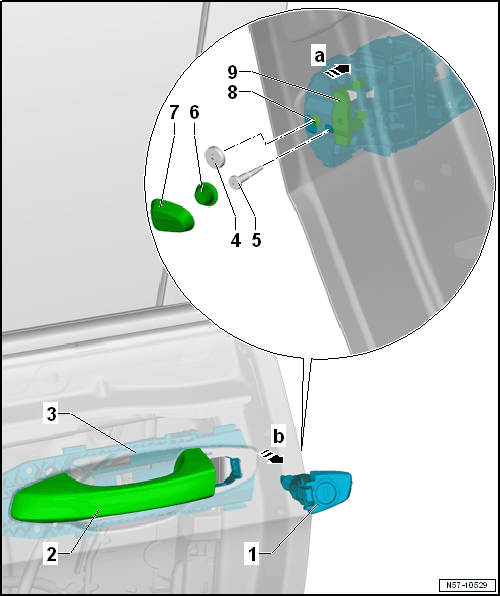

-- Remove the lock cylinder cap. Refer to CAP WITH LOCK CYLINDER, REMOVING AND INSTALLING .

-- Lift off the covers -4 and 6 or 7-.

-- Remove the bolt -5-.

-- Remove the bolt -8- all the way.

-- Push in the bolt -8- with the locking mechanism -9- -arrow a-. Only then is the lock cylinder released.

-- Remove the door handle -2- from the door.

-- Remove the lock cylinder housing -1- from the mounting bracket -3- at a right angle -arrow b- to the door.
