Lock Cylinder, Removing And Installing: Installing

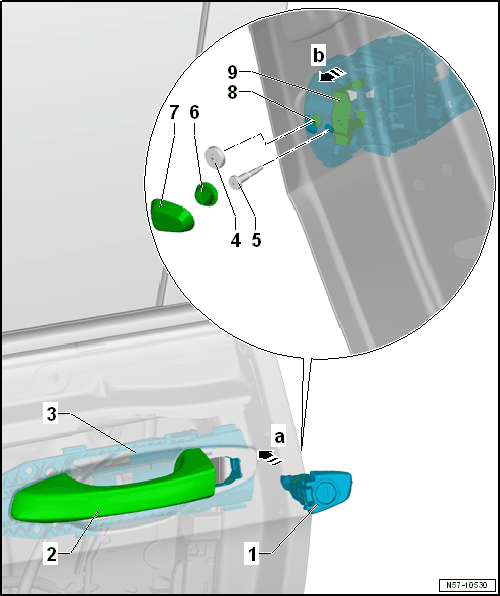

-- Remove the door handle -2- from the door.
-- Install the lock cylinder housing -1- into the mounting bracket -3- at a right angle -arrow a-.
-- Install the bolts -5- and -8- in the mounting bracket. The screw -8- draws the locking mechanism -9- into position -arrow b-.
NOTE:
The lock cylinder housing must be pressed onto the outer door panel while installing.
Further installation is performed in reverse order of removal, while noting the following:
- Then a function test must be performed with the door opened.
