Overview - Windshield Wiper System

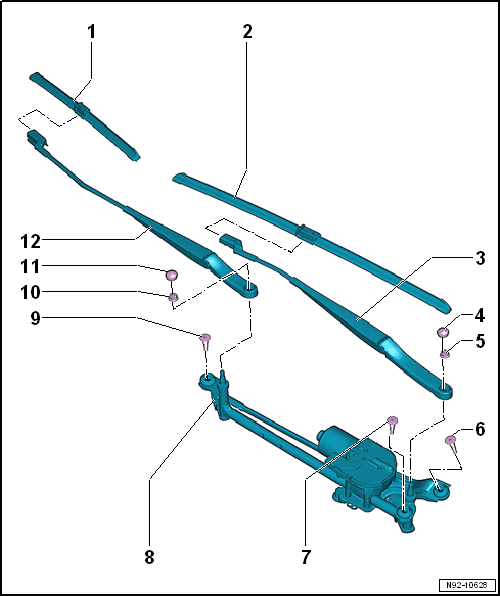

Fig 1: Exploded View Of Windshield Wiper System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Side Wiper Blade
   • Different lengths. Refer to the Parts Information.
   • Removing and installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
2. Driver Side Wiper Blade
   • Different lengths. Refer to the Parts Information.
   • Removing and installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
3. Driver Side Windshield Wiper Arm
   • Different lengths. Refer to the Parts Information.
   • Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
   • Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
4. Cap
5. Nut
   • 20 Nm
6. Bolt
   • Tightening specification and sequence. Refer to Fig 2.
7. Bolt
   • Tightening specification and sequence. Refer to Fig 2.
8. Windshield Wiper Frame
   • With Windshield Wiper Motor -V-
   • with the Wiper Motor Control Module -J400-
   • Removing and installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
9. Bolt
   • Tightening specification and sequence. Refer to Fig 2.
10. Nut
    • 20 Nm
11. Cap
12. Front Passenger Side Windshield Wiper Arm
    • Different lengths. Refer to the Parts Information.
    • Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
    • Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .

Tightening Specifications and Sequence for the Windshield Wiper Motor V

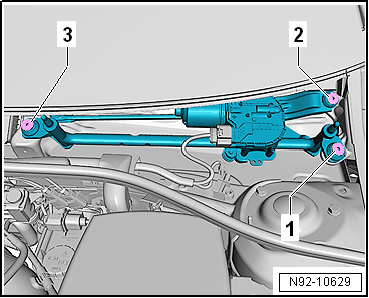

Fig 2: Windshield Wiper Motor Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in the steps shown in the sequence:
