Left And Right Rear Treble Speaker -R14- / -R16-, Removing And Installing, 2-Door Vehicles: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

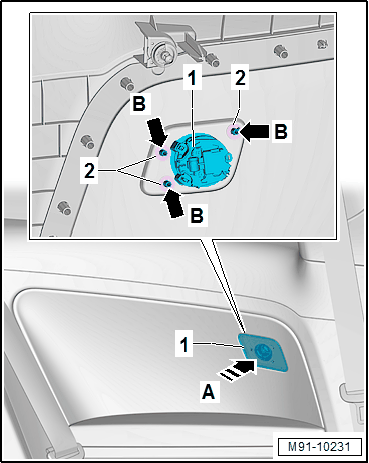

-- Insert the new Left Rear Treble Speaker -R14- with the trim -1- into the side trim panel in the direction of -arrow A-.

-- Press the lock washer -2- all the way onto the pins -B arrows- on the trim.

-- Cut back the pins -B arrows- above the lock washers -2- on the trim to a maximum of 2 mm projecting end.

-- Install the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
