Component Location Overview - Infotainment System

NOTE:

The component locations for the Sedan are shown. The component locations for the Wagon are identical.

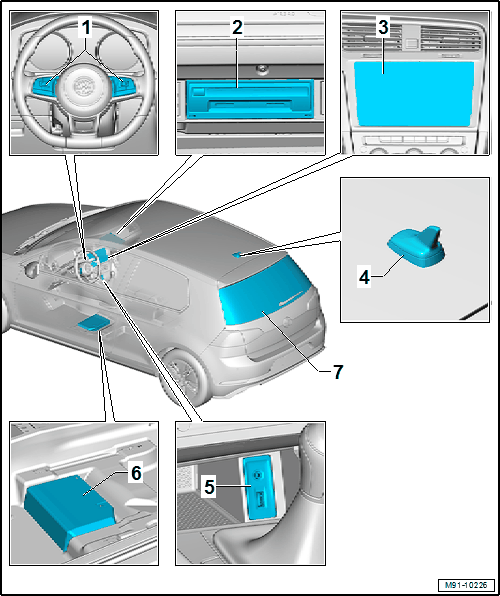

GWWM91-10226Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Multifunction Buttons in Steering Wheel
  2. Information Electronics Control Module 1 -J794-
  3. Front Information Display Control Head -J685-
  4. Roof Antenna -RX5-
  5. External Multimedia Device Connection
  6. Digital Sound System Control Module -J525-
  7. Rear Window Antenna
