Connection For External Multimedia Devices, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the front center console storage compartment. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

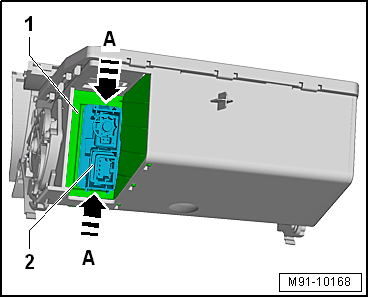

-- On external multimedia device connections -2-, press the tabs in the direction of -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the connection for external multimedia devices -2- out of the storage compartment -1-.
