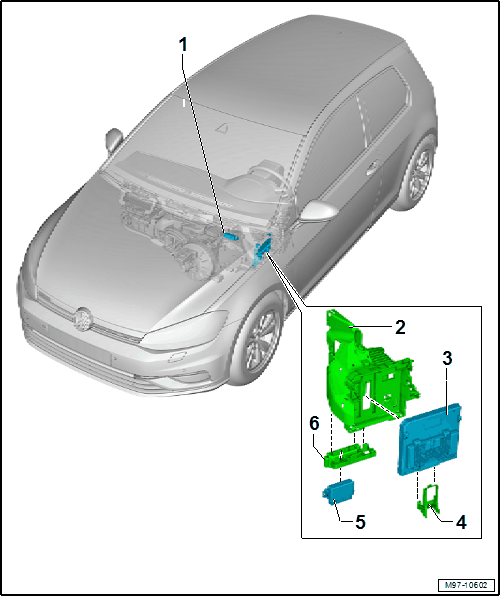

Component Location Overview - Control Modules
- Data Bus on Board Diagnostic Interface -J533-
- On the crash bolster
- Removing and installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
- Bracket
- For Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Guide
- For the center connector
- Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- With parking aid: Parking Aid Control Module -J446-
- Overview. Refer to OVERVIEW - PARKING AID .
- With parallel parking assist: Parallel Parking Assistance Control Module -J791-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Bracket
- For Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791- BRACKET, REMOVING AND INSTALLING .
