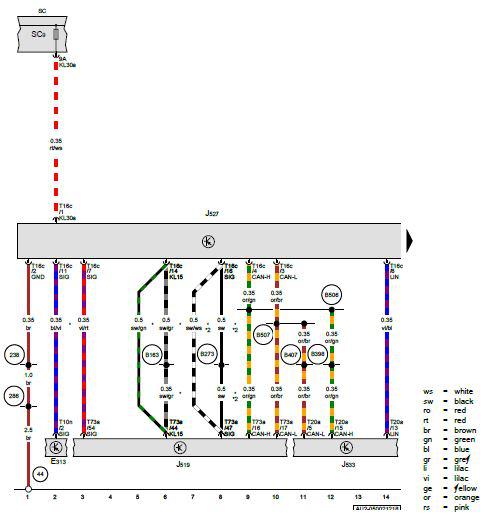

Selector Lever, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Fuse Panel C
E313 - Selector Lever
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
SC - Fuse Panel C
SC9 - Fuse 9 (On Fuse Panel C)
T10n - 10-Pin Connector
T16c - 16-Pin Connector
T20a - 20-Pin Connector, Red
T73a - 73-Pin Connector, Black
44 - Ground Connection on A-Pillar, Lower Left
238 - Ground Connection 1 (in Interior Wiring Harness)
286 - Ground Connection 8 (in Interior Wiring Harness)
B163 - Positive Connection 1 (15) (in Interior Wiring Harness)
B273 - Positive Connection (15) (in Main Wiring Harness)
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
* - Depending on Equipment
*2 - Omitted as a Running Change
