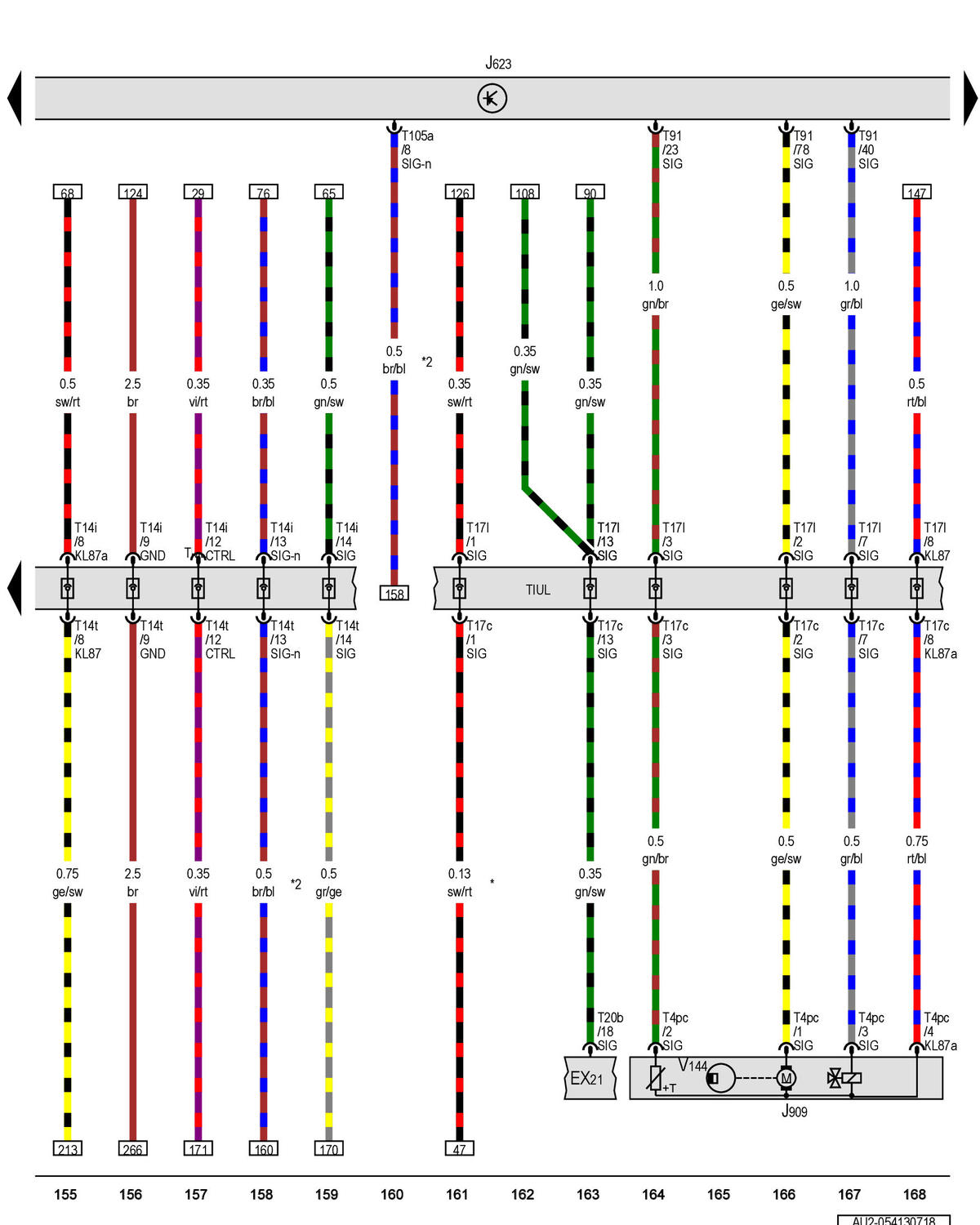

Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Leak Detection Pump: Notes

GWWAU2-054130718Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
