Vehicle Electrical System Control Module

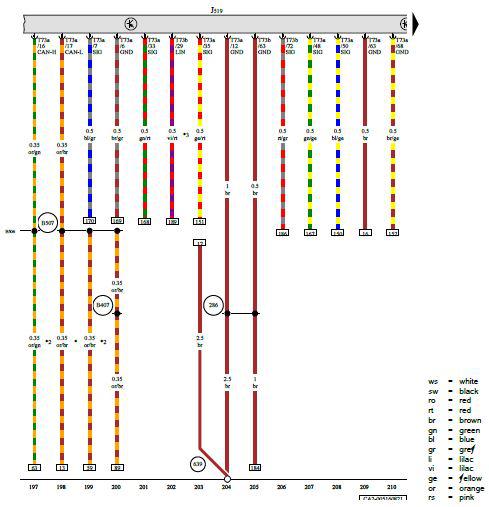

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519 -  Vehicle Electrical System Control Module

T73a -  73-Pin Connector, Black

T73b -  73-Pin Connector, Black

286 -  Ground Connection 8 (in Interior Wiring Harness)

639 -  Ground Connection on Left A-Pillar

B407 -  Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B506 -  Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507 -  Comfort CAN Bus Low Connection (in Interior Wiring Harness)

* -  For Vehicles without Peripheral Camera

*2 -  For Vehicles with Peripheral Camera

*3 -  For Vehicles with Ambient Lighting

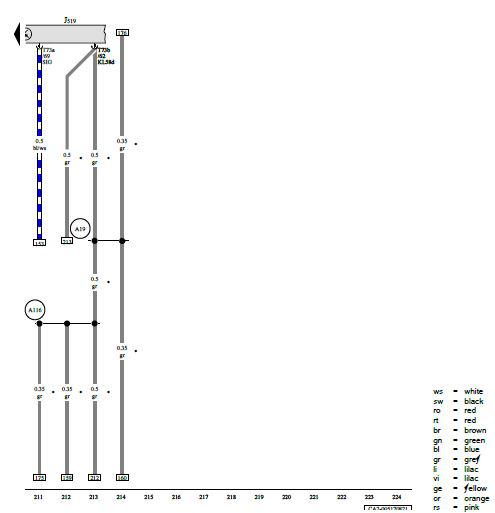

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519 -  Vehicle Electrical System Control Module

T73a -  73-Pin Connector, Black

T73b -  73-Pin Connector, Black

A19 -  Connection 58d (in Instrument Panel Wiring Harness)

A116 -  Connection 58d (in Instrument Panel Wiring Harness) 2

* -  Depending on Equipment
