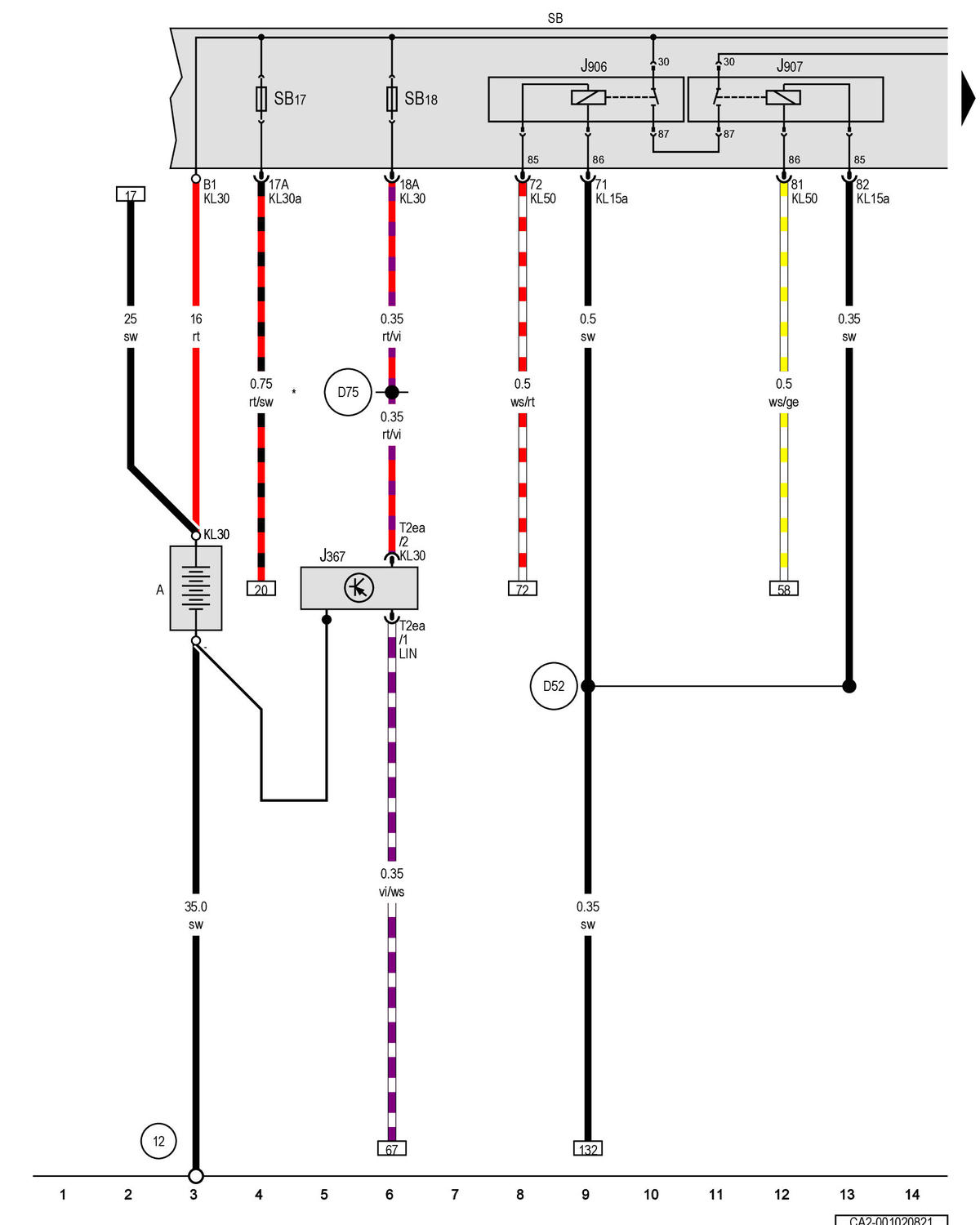

Battery, Battery Monitoring Control Module, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A

Battery Type:BT, Slpdok:, Aim:BTA

J367

Battery Monitoring Control Module Type:BT, Slpdok:, Aim:BTJ367

J906

Starter Relay 1 Type:BT, Slpdok:, Aim:BTJ906

J907

Starter Relay 2 Type:BT, Slpdok:, Aim:BTJ907

SB

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB17

Fuse 17 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB18

Fuse 18 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T2ea

2-Pin Connector, Black

12

Ground Connection in Engine/Motor Compartment, Left Type:VB, Slpdok:, Aim:VB12

D52

Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)

D75

Positive Connection 2 (30) (in Engine/Motor Compartment Wiring Harness)

*

Diameter Depends on Equipment
