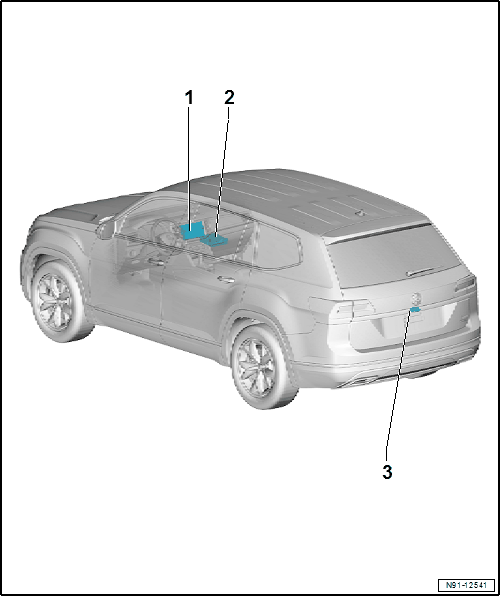

Component Location Overview - Rearview Camera System
WARNING: This page is about a different car, the 2020 Volkswagen Atlas, 2019 Volkswagen Atlas, and 2018 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Composition Color: in connection with the Information Electronics Control Module 1 -J794-
- Composition Media, Discover Media: individual display
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and installing Composition Media, Discover Media. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Only on Composition Media, Discover Media in glove compartment
- For Composition Color in connection with the Front Information Display Control Head -J685- in the center instrument panel
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and installing Composition Media, Discover Media. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Rearview Camera -R189-
- With integrated Rearview Camera System Control Module -J772-
- Integrated in the rear lid handle button
- Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Rearview Camera System, Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
