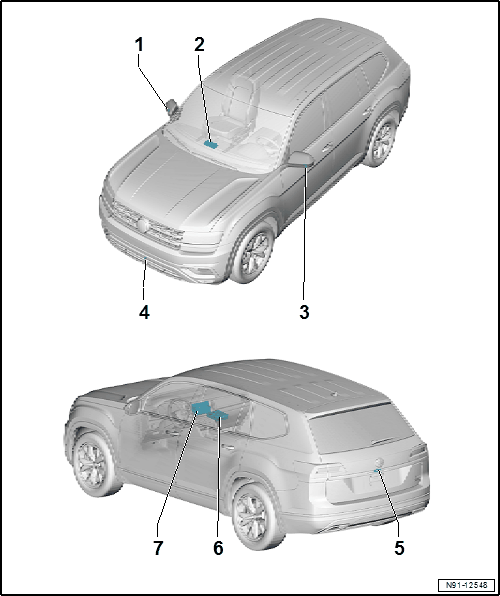

Component Location Overview - Peripheral Camera
WARNING: This page is about a different car, the 2020 Volkswagen Atlas, 2019 Volkswagen Atlas, and 2018 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Right Peripheral Camera -R245-
- In the right exterior rearview mirror
- Removing and Installing. Refer to Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Peripheral Camera Control Module -J928-
- Under the right front seat
- Removing and Installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Left Peripheral Camera -R244-
- In the left exterior rearview mirror
- Removing and Installing. Refer to Left Peripheral Camera -R244-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Front Peripheral Camera -R243-
- In the front bumper cover
- Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Rear Peripheral Camera -R246-
- Integrated in the rear lid handle button
- Removing and Installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Information Electronics Control Module 1 -J794-
- Only on Composition Media, Discover Media in glove compartment
- For Composition Color in connection with the Front Information Display Control Head -J685- in the center instrument panel
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and installing Composition Media, Discover Media. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Composition Color: in connection with the Information Electronics Control Module 1 -J794-
- Composition Media, Discover Media: individual display
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and installing Composition Media, Discover Media. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
