Overview - Window Regulator

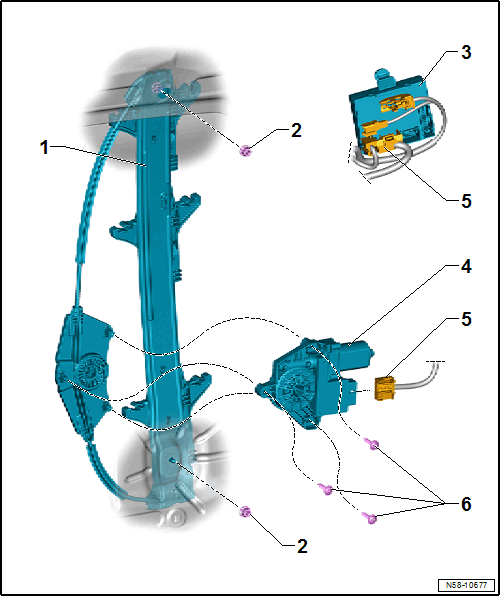

Fig 1: Exploded View Of Window Regulator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Nut
- Quantity: 2
- 6 Nm
Left and Right Rear Door Control Module -J388/J389-
- Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
Window Regulator Motor
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Connectors
Bolt
- Quantity: 3
- 3 Nm
