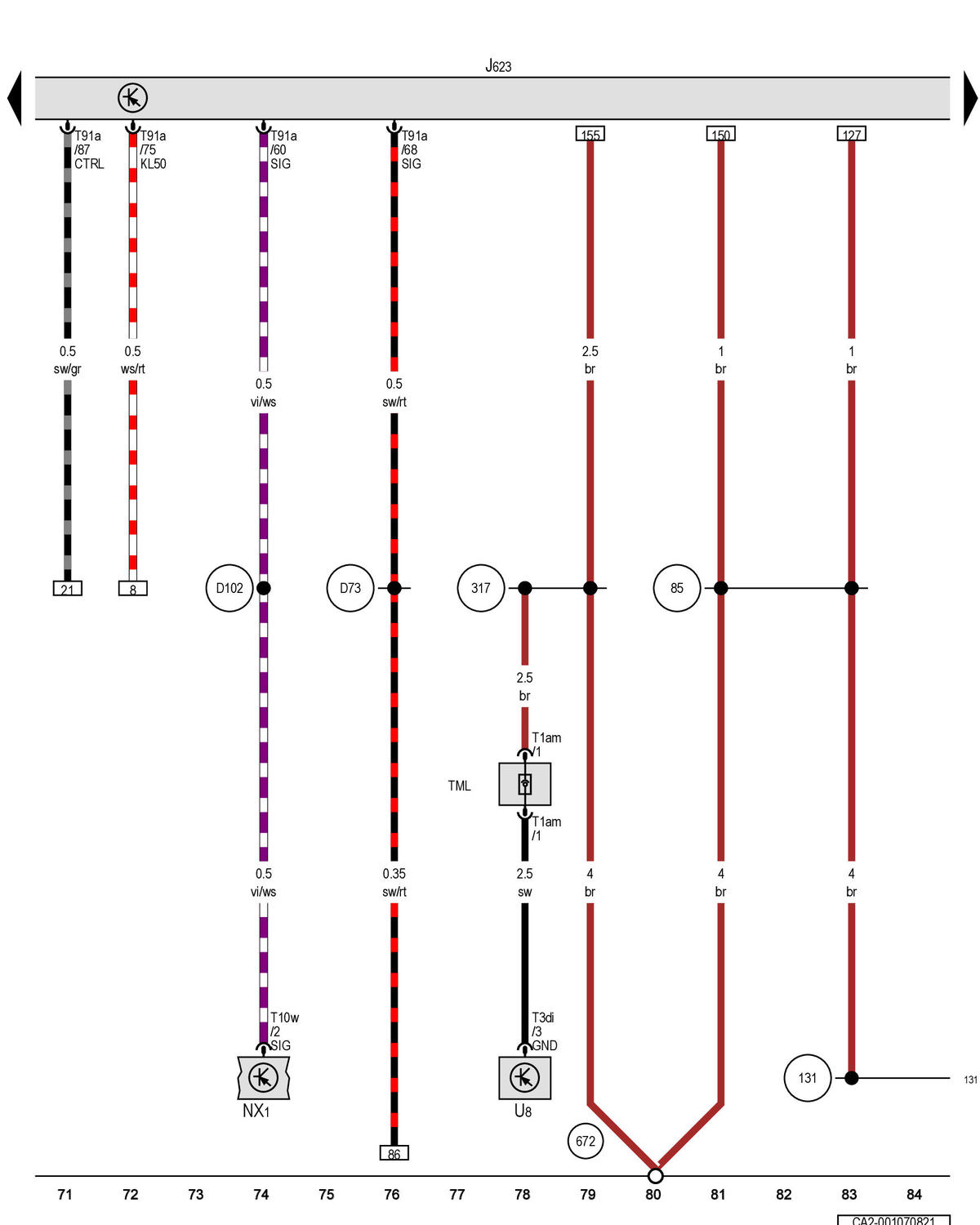

Engine/Motor Control Module, Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

NX1

Transmission Type:BT, Slpdok:, Aim:BTNX1

T1am

1-Pin Connector

T3di

3-Pin Connector

T10w

10-Pin Connector, Black

T91a

91-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

U8

Exterior Socket, 230 V, 110 V Type:BT, Slpdok:, Aim:BTU8

85

Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)

131

Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

317

Ground Connection 7 (in Engine/Motor Compartment Wiring Harness)

672

Ground Connection 2 on Left Front Longitudinal Member Type:VB, Slpdok:, Aim:VB672

D73

Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)

D102

Connection 2 (in Engine/Motor Compartment Wiring Harness)
